Non-flow silicone sealant
Product Description:
Non-flow silicone sealant is a class of one-component room temperaturecuring neutral silicone materials with high and low temperature resistance,excellent aging resistance, flexibility, insulation, moisture, shock, coronaresistance, and resistance to leakage. The surface does not flow, can be bondedto steel, glass, PVC, ABS and other materials. Suitable for electroniccomponents and other types of adhesive sealing.
593 SiliconeRubber Sealant
Deoxime type, black color, suitable for sealing and bonding of all kindsof electronic components.

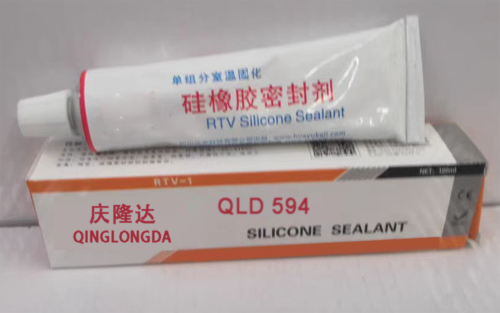

594 SiliconeRubber Sealant
Deoxime type, transparent, suitable formoisture-proof adhesive sealing of circuit boards etc. with transparent requirements.
595 SiliconeRubber Sealant
Deoxime type, white color, suitable formoisture-proof adhesive sealing of refrigerators, solar modules, electronic components and so on.
583 SiliconeRubber Sealant
Dehydrated, various colors, non-corrosive topolycarbonate (PC), copper and other materials, suitable for all kinds of electronic components sealing bonding.
Performance parameters：：
|
Non-flowing silicone sealant |
||||
|
Performance indicators |
593 |
594 |
595 |
583 |
|
Appearances |
Black |
Transparent |
White |
By choice |
|
Densities（g/cm3） |
1.1~1.4 |
0.9~1.1 |
1.1~1.4 |
1.1~1.4 |
|
Surface drying time（min） |
10~30 |
10~30 |
10~30 |
5~15 |
|
Tensile strength（MPa） |
1.0~2.0 |
1.0~2.0 |
1.0~2.0 |
1.0~2.0 |
|
Elongation（%） |
300~500 |
200~350 |
300~500 |
200~300 |
|
Hardness（shore A） |
30~50 |
20~30 |
30~50 |
25~35 |
|
Shearing strength（MPa） |
1.0~2.0 |
1.0~2.0 |
1.0~2.0 |
1.0~2.0 |
|
Dielectric strength（kv/mm） |
20 |
20 |
20 |
20 |
|
Loss factor（1.2MHz） |
0.001 |
0.001 |
0.001 |
0.001 |
|
Volume resistance（Ω·cm, 25℃） |
2.0×1014 |
|||
|
Working temperature range（℃） |
-60~250 |
-60~250 |
-60~250 |
-60~250 |
|
Wire shrinkage（%） |
0.3 |
0.3 |
0.3 |
0.3 |
|
Thermal conductivity（W/M·K） |
0.3 |
0.3 |
0.3 |
0.3 |
Operation process:
1. Clean the surface: The surface of theobject to be adhered to clean, remove rust, dust, moisture and oil.
2. Glue application: Cut the glue nozzle, putit into the glue gun, and squeeze the glue into the surface that has been cleaned up, so it is evenly distributed.
3. Adhesive sealing: 20 minutes after theglue application must be bonded, the adhesive surfacewill be fixed together.
4. Curing: room temperature curing for 24 hours to reach the higheststrength.
Higher temperature in summer, curing will befaster; lower temperature in winter, curing will be slower.
Notes:
Silicone rubber absorbs moisture and cures,unused rubber should be sealed and stored. Sealed storage in a cool dry place, storage period of 9 months.
